基于多实例学习和yolov10实现水下目标检测（RUOD）

一、引言

清华大学发了一篇《YOLOv10: Real-Time End-to-End Object Detection》论文，提升了计算机视觉模型的性能，而且响应更快。

于是我结合了百度飞桨paddle开源的水下目标检测Ruod数据集，然后将多实例学习注意力机制结合到yolov10，让它能学习更快，效率更高。接下来是我做的工作：

二、准备工作

（1）运行环境

python≥3.9
anaconda
GeForce Nvidia 1080ti
Windows

（2）YOLOv10安装

conda create -n yolo10 python=3.9
conda activate yolo10
git https://github.com/THU-MIG/yolov10.git
cd yolov10-main
pip install -r requirements.txt
pip install -e .

遇到报错：ERROR: No matching distribution found for xxxx.

解决方法，离线安装：

pip install -e .  --no-build-isolation --no-index --find-links=./

然后根据缺少的包pip install。

（3）RUOD数据集

1）下载：水下目标检测Ruod数据集_数据集-飞桨AI Studio星河社区 ，一共有holothurian，echinus，scallop，starfish，fish，corals，diver，cuttlefish，turtle，jellyfish10个常见类别；

2）数据处理：

数据集要处理从COCO格式，所以我们要做这一步，在yolov10-main目录下新建一个py文件，填入代码并python一下：

import json
import glob
import os
import shutil
from pathlib import Path
import numpy as np
from tqdm import tqdm

def make_folders(path='./coco/'):
    # Create folders
    if os.path.exists(path):
        shutil.rmtree(path)  # delete output folder
    os.makedirs(path)  # make new output folder
    os.makedirs(path + os.sep + 'labels')  # make new labels folder
    os.makedirs(path + os.sep + 'images')  # make new images folder
    return path

def convert_coco_json(json_dir='H:/xiangmu/2/RUOD/RUOD_ANN/'):
    jsons = glob.glob(json_dir + '*.json')  # Import json
    for json_file in sorted(jsons):
        fn = 'coco/labels/%s/' % Path(json_file).stem.replace('instances_', '')  # folder name
        fn_images = 'coco/images/%s/' % Path(json_file).stem.replace('instances_', '')  # folder name
        os.makedirs(fn, exist_ok=True)
        os.makedirs(fn_images, exist_ok=True)

        with open(json_file) as f:
            data = json.load(f)

        print(fn)

        # Create image dict
        images = {'%g' % x['id']: x for x in data['images']}

        # Write labels file
        for x in tqdm(data['annotations'], desc='Annotations %s' % json_file):
            if x['iscrowd']:
                continue
            img = images['%g' % x['image_id']]
            h, w, f = img['height'], img['width'], img['file_name']
            file_path = './RUOD/RUOD_pic/' + fn.split('/')[-2] + "/" + f

            # The Labelbox bounding box format is [top left x, top left y, width, height]
            box = np.array(x['bbox'], dtype=np.float64)
            box[:2] += box[2:] / 2  # xy top-left corner to center
            box[[0, 2]] /= w  # normalize x
            box[[1, 3]] /= h  # normalize y

            if (box[2] > 0.) and (box[3] > 0.):  # if w > 0 and h > 0
                with open(fn + Path(f).stem + '.txt', 'a') as file:
                    file.write('%g %.6f %.6f %.6f %.6f\n' % (x['category_id'] - 1, *box))

            file_path_t = fn_images + f
            print(file_path, file_path_t)
            shutil.copy(file_path, file_path_t)

convert_coco_json()

然后运行之后，在同级目录下新建一个叫coco.yaml的文件，输入内容：

train: ./coco/images/train # train images
val: ./coco/images/test # val images
names: ['holothurian', 'echinus', 'scallop', 'starfish','fish','corals','diver','cuttlefish','turtle','jellyfish']

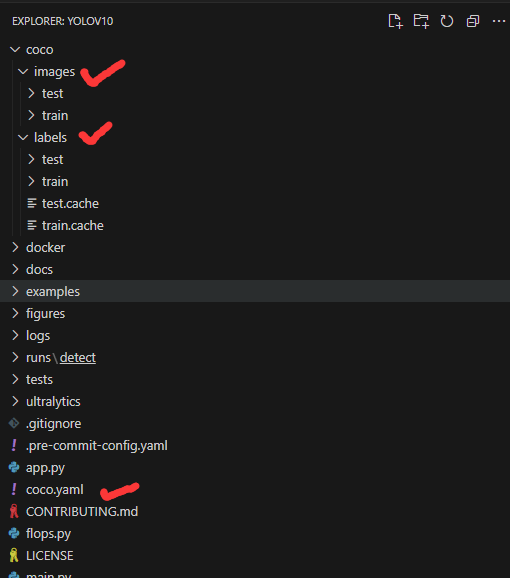

项目结构如下：

3）可以开始训练模型了，同级目录下新建文件main.py，输入：

import torch
import torch.nn as nn
import torch.nn.functional as F
from ultralytics import YOLOv10

class Attention(nn.Module):
    def __init__(self):
        super(Attention, self).__init__()
        self.M = 500
        self.L = 128
        self.ATTENTION_BRANCHES = 1

        self.feature_extractor_part1 = nn.Sequential(
            nn.Conv2d(1, 20, kernel_size=5),
            nn.ReLU(),
            nn.MaxPool2d(2, stride=2),
            nn.Conv2d(20, 50, kernel_size=5),
            nn.ReLU(),
            nn.MaxPool2d(2, stride=2)
        )

        self.feature_extractor_part2 = nn.Sequential(
            nn.Linear(50 * 4 * 4, self.M),
            nn.ReLU(),
        )

        self.attention = nn.Sequential(
            nn.Linear(self.M, self.L), # matrix V
            nn.Tanh(),
            nn.Linear(self.L, self.ATTENTION_BRANCHES) # matrix w (or vector w if self.ATTENTION_BRANCHES==1)
        )

        self.classifier = nn.Sequential(
            nn.Linear(self.M*self.ATTENTION_BRANCHES, 1),
            nn.Sigmoid()
        )

    def forward(self, x):
        x = x.squeeze(0)

        H = self.feature_extractor_part1(x)
        H = H.view(-1, 50 * 4 * 4)
        H = self.feature_extractor_part2(H)  # KxM

        A = self.attention(H)  # KxATTENTION_BRANCHES
        A = torch.transpose(A, 1, 0)  # ATTENTION_BRANCHESxK
        A = F.softmax(A, dim=1)  # softmax over K

        Z = torch.mm(A, H)  # ATTENTION_BRANCHESxM

        Y_prob = self.classifier(Z)
        Y_hat = torch.ge(Y_prob, 0.5).float()

        return Y_prob, Y_hat, A

    # AUXILIARY METHODS
    '''def calculate_classification_error(self, X, Y):
        Y = Y.float()
        _, Y_hat, _ = self.forward(X)
        error = 1. - Y_hat.eq(Y).cpu().float().mean().data.item()

        return error, Y_hat

    def calculate_objective(self, X, Y):
        Y = Y.float()
        Y_prob, _, A = self.forward(X)
        Y_prob = torch.clamp(Y_prob, min=1e-5, max=1. - 1e-5)
        neg_log_likelihood = -1. * (Y * torch.log(Y_prob) + (1. - Y) * torch.log(1. - Y_prob))  # negative log bernoulli

        return neg_log_likelihood, A'''

class GatedAttention(nn.Module):
    def __init__(self):
        super(GatedAttention, self).__init__()
        self.M = 500
        self.L = 128
        self.ATTENTION_BRANCHES = 1

        self.feature_extractor_part1 = nn.Sequential(
            nn.Conv2d(1, 20, kernel_size=5),
            nn.ReLU(),
            nn.MaxPool2d(2, stride=2),
            nn.Conv2d(20, 50, kernel_size=5),
            nn.ReLU(),
            nn.MaxPool2d(2, stride=2)
        )

        self.feature_extractor_part2 = nn.Sequential(
            nn.Linear(50 * 4 * 4, self.M),
            nn.ReLU(),
        )

        self.attention_V = nn.Sequential(
            nn.Linear(self.M, self.L), # matrix V
            nn.Tanh()
        )

        self.attention_U = nn.Sequential(
            nn.Linear(self.M, self.L), # matrix U
            nn.Sigmoid()
        )

        self.attention_w = nn.Linear(self.L, self.ATTENTION_BRANCHES) # matrix w (or vector w if self.ATTENTION_BRANCHES==1)

        self.classifier = nn.Sequential(
            nn.Linear(self.M*self.ATTENTION_BRANCHES, 1),
            nn.Sigmoid()
        )

    def forward(self, x):
        x = x.squeeze(0)

        H = self.feature_extractor_part1(x)
        H = H.view(-1, 50 * 4 * 4)
        H = self.feature_extractor_part2(H)  # KxM

        A_V = self.attention_V(H)  # KxL
        A_U = self.attention_U(H)  # KxL
        A = self.attention_w(A_V * A_U) # element wise multiplication # KxATTENTION_BRANCHES
        A = torch.transpose(A, 1, 0)  # ATTENTION_BRANCHESxK
        A = F.softmax(A, dim=1)  # softmax over K

        Z = torch.mm(A, H)  # ATTENTION_BRANCHESxM

        Y_prob = self.classifier(Z)
        Y_hat = torch.ge(Y_prob, 0.5).float()

        return Y_prob, Y_hat, A

    # AUXILIARY METHODS
    '''def calculate_classification_error(self, X, Y):
        Y = Y.float()
        _, Y_hat, _ = self.forward(X)
        error = 1. - Y_hat.eq(Y).cpu().float().mean().item()

        return error, Y_hat

    def calculate_objective(self, X, Y):
        Y = Y.float()
        Y_prob, _, A = self.forward(X)
        Y_prob = torch.clamp(Y_prob, min=1e-5, max=1. - 1e-5)
        neg_log_likelihood = -1. * (Y * torch.log(Y_prob) + (1. - Y) * torch.log(1. - Y_prob))  # negative log bernoulli

        return neg_log_likelihood, A'''



class MIL_YOLOv10(YOLOv10):
    def __init__(self, model_cfg, attention_type='attention'):
        super(MIL_YOLOv10, self).__init__(model_cfg)

        # 加载预训练权重
        self.load('yolov10n.pt')

        # 选择注意力机制
        if attention_type == 'attention':
            self.attention_module = Attention()
        elif attention_type == 'gated_attention':
            self.attention_module = GatedAttention()
        else:
            raise ValueError("Unknown attention type")

    def forward(self, x):
        # 获取 YOLOv10 的特征图
        features = super().forward(x)  # 使用 YOLOv10 的特征提取

        # 将特征图展平并通过 MIL 模块
        features = features.view(features.size(0), -1)

        # 通过注意力机制处理特征
        attention_weights, _, _ = self.attention_module(features)

        return attention_weights

if __name__ == '__main__':
    # 创建 MIL-YOLOv10 模型
    model_cfg = "H:/xiangmu/2/yolov10/ultralytics/cfg/models/v10/yolov10n.yaml"
    model = MIL_YOLOv10(model_cfg, attention_type='attention')  # 选择 'attention' 或 'gated_attention'

    # 训练模型
    # 由于 `YOLOv10` 可能会提供高层次的训练接口，具体训练过程请参考 YOLOv10 文档
    # 此处假设 YOLOv10 的 `train` 方法可以直接调用
    results = model.train(
        data="coco.yaml",
        patience=0,
        epochs=50,
        device='0',
        batch=16,
        seed=42
    )

4）验证：

from ultralytics import YOLOv10

if __name__ == '__main__':
    # Load a custom model
    model = YOLOv10('runs/detect/train/weights/best.pt')

    # Validate the model，if test mode turn "split='test'"
    metrics = model.val(split='val', save_json=True)

5）测试：（用训练好的模型pt测试其他的数据）

from ultralytics import YOLOv10

if __name__ == '__main__':
    # Load a custom model
    model = YOLOv10('runs/detect/train/weights/best.pt')

    # Predict on an image
    results = model.predict(source="ultralytics/assets", device='0', visualize=True, save=True)

    # Print results
    print(results)

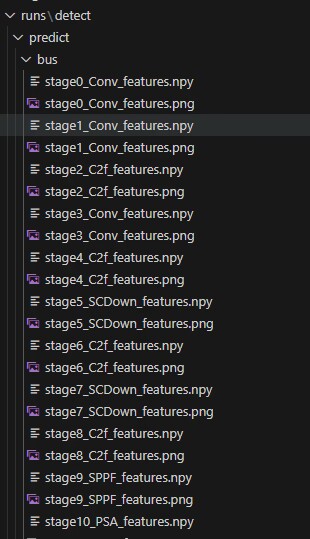

6）读取特征：

#导入所需的包
import numpy as np#导入npy文件路径位置
test = np.load('runs/detect/predict/zidane/stage2_C2f_features.npy')
print(test.shape[0])

三、代码地址

https://github.com/Lucki-ly/yolov10

四、效果展示

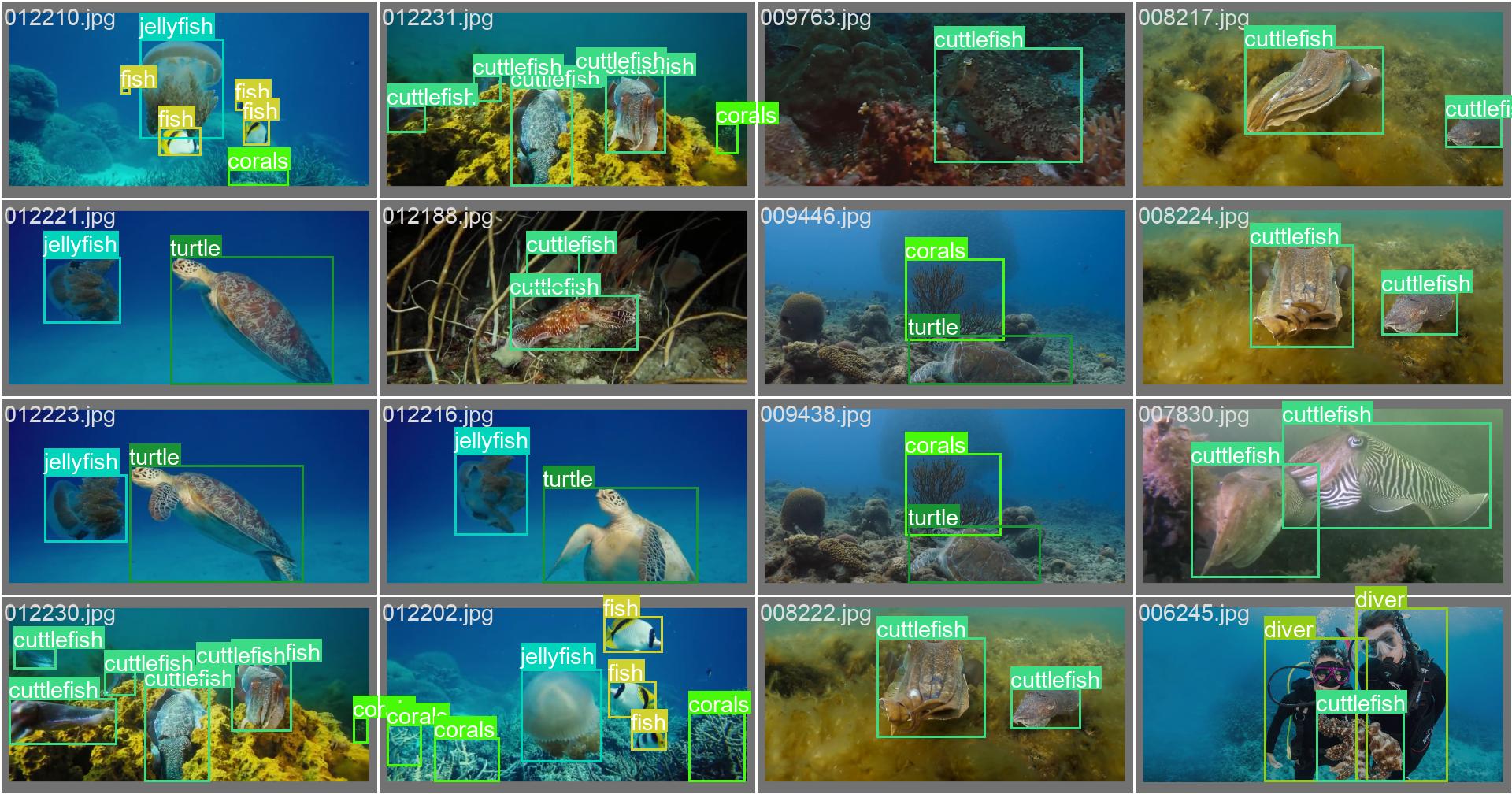

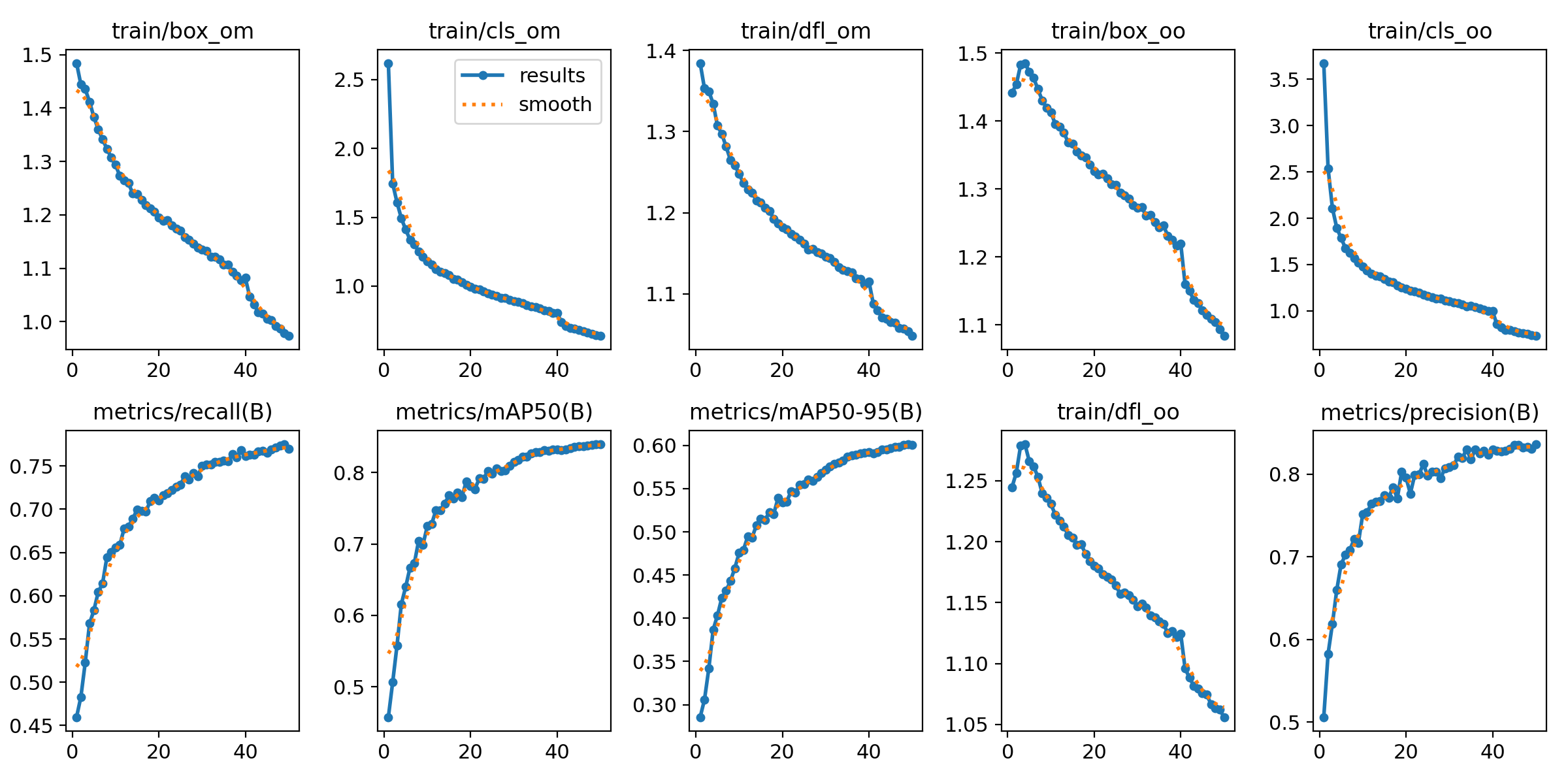

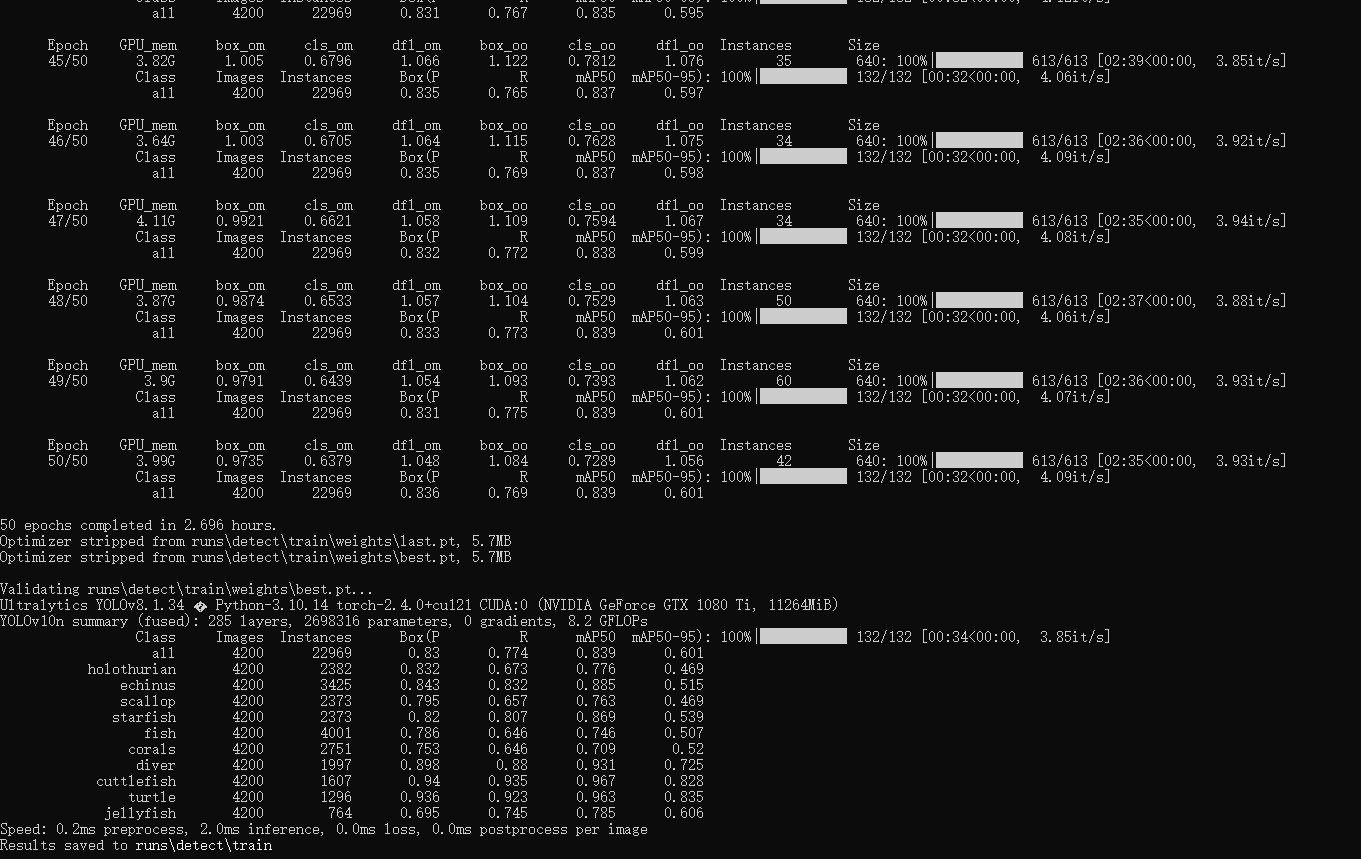

（1）训练结果：

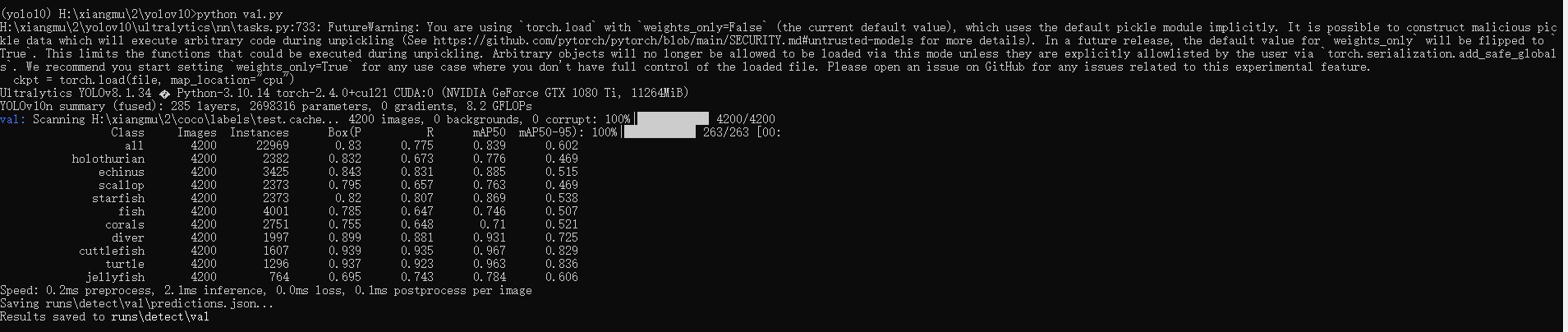

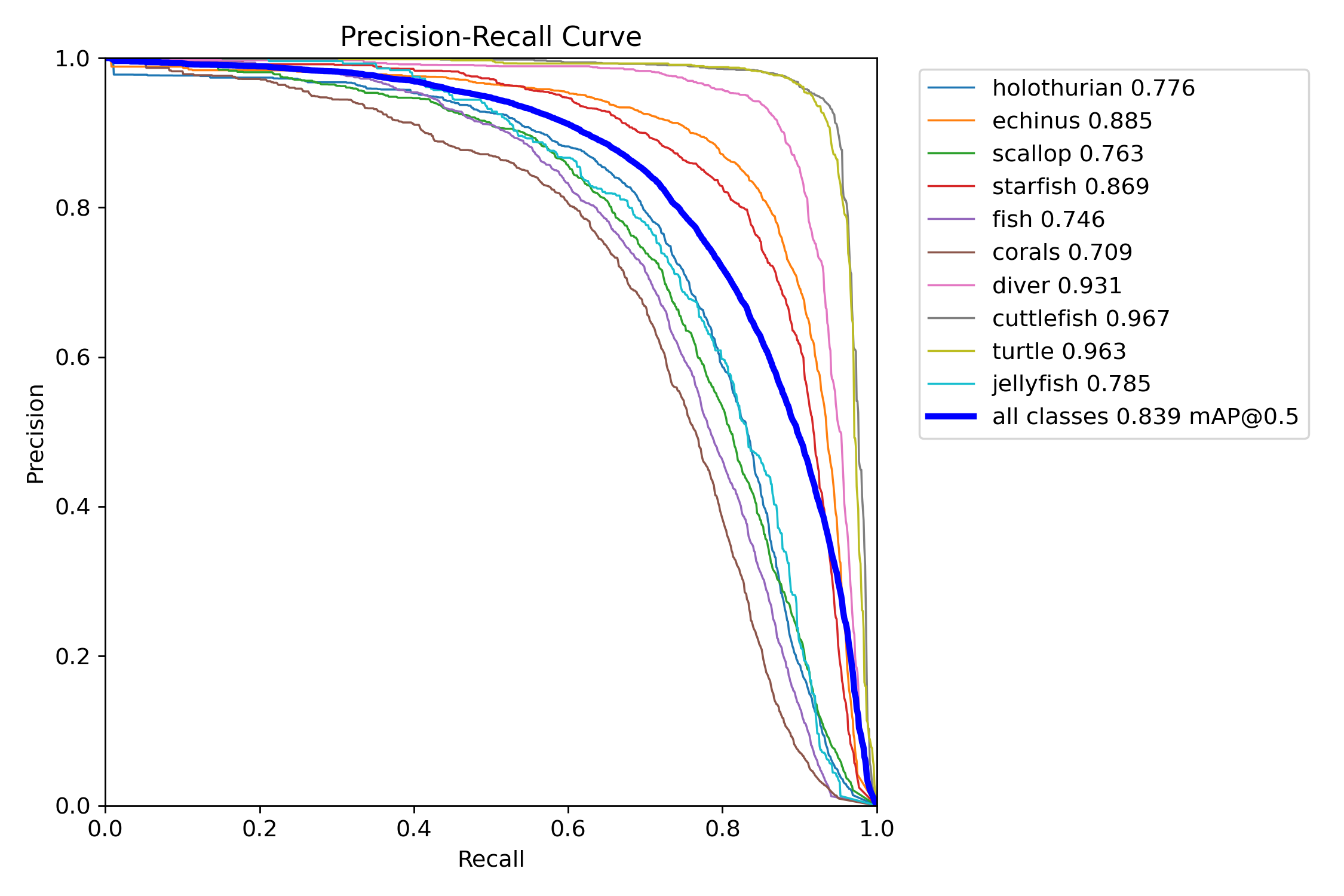

（2）验证结果：

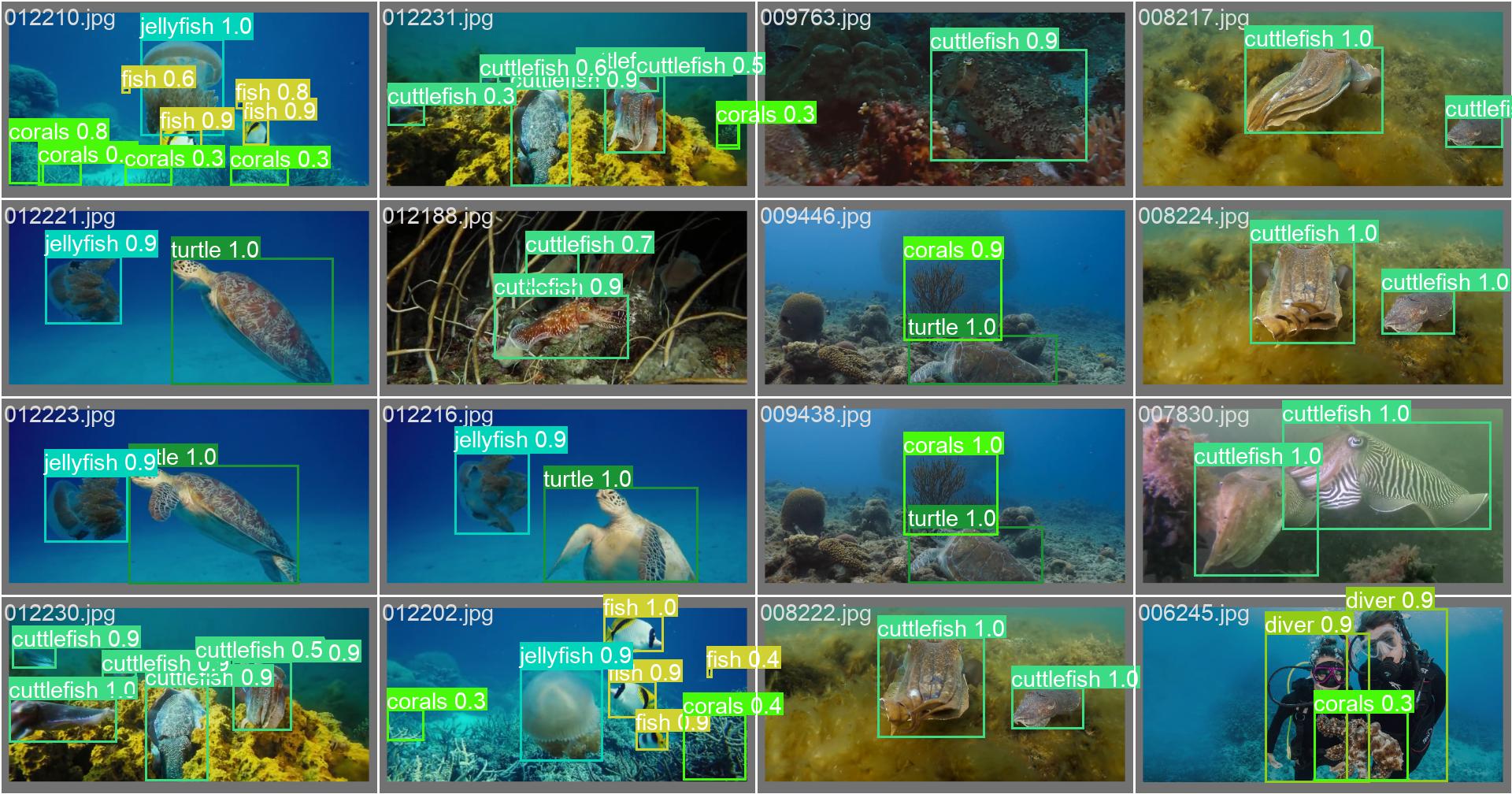

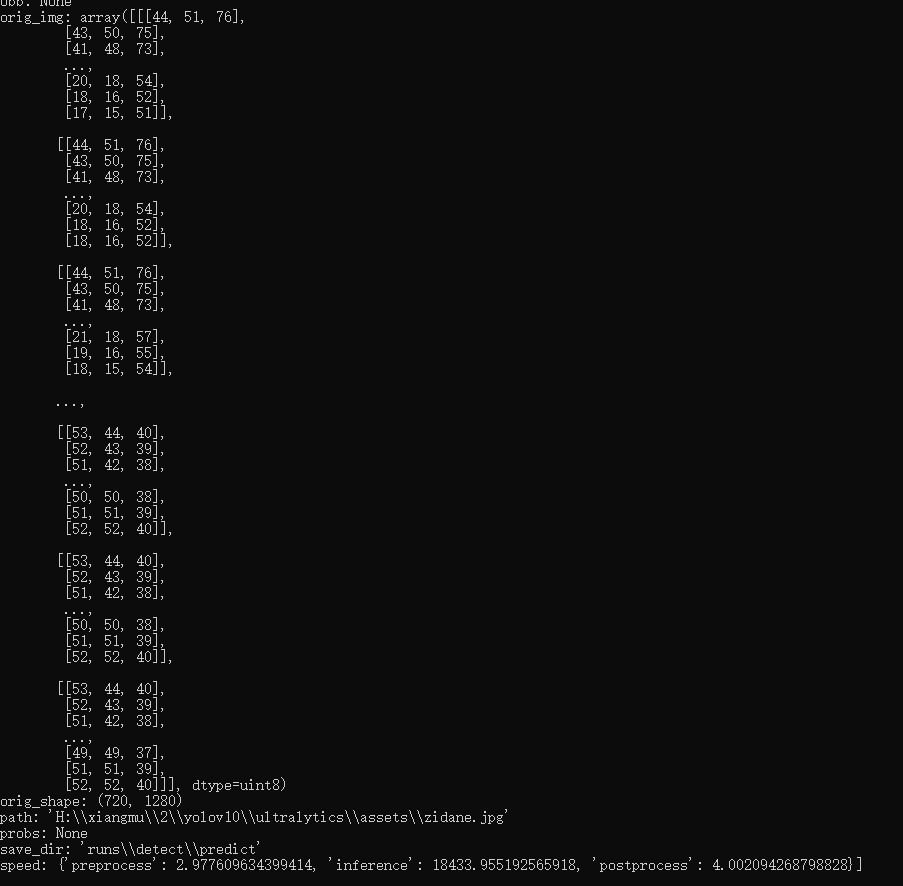

（3）测试结果：
